EasiDrive portable valve actuator

Ease frequent operation of your heavy manual valves.

Save on actuator CAPEX

With one EasiDrive portable actuator you operate many valves.

Prevent back injuries

The EasiDrive portable actuator improves operator inconvenience.

Save operating time

Quickly open and close any type of multi-turn manual valve.

Reduce investment costs by saving on actuator CAPEX

With one EasiDrive portable actuator you operate many valves. It is carried into the field and connected to preinstalled mounting brackets on your manual valves. And it requires no permanent power supply or connection to your plant automation system. This makes it a very cost efficient alternative for using multiple stand-alone actuators.

Experience optimal convenience during valve operation

The EasiDrive portable actuator is a light-weight tool. Carrying the tool into the field costs you no physical effort. You can operate the tool with one hand, since all force during operation is diverted through the reaction arm on the mounting bracket.

Prevent back injuries caused by heavy valve operations

The EasiDrive portable actuator is a light-weight tool. Carrying the tool into the field costs you no physical effort. You can operate the tool with one hand, since all force during operation is diverted through the reaction arm on the mounting bracket.

Save up to 80% of valve operating time

With the EasiDrive portable actuator you quickly open and close any type of multi-turn manual valve. Even valves that require a high number of rotations or need high operating torque are operated in just minutes.

Pneumatic or electric

EasiDrive portable valve actuator is versatile. You can power it by air, electricity or battery. Torque of up to 950NM can be generated, depending on your choice of equipment.

Powered by air

  • Adjustable operating torque up to 1.000Nm
  • Comes with a lubro control unit for air filtering and lubrication

Powered by electricity

  • Powered by 110V or 240V
  • Adjustable torque up to 550 Nm

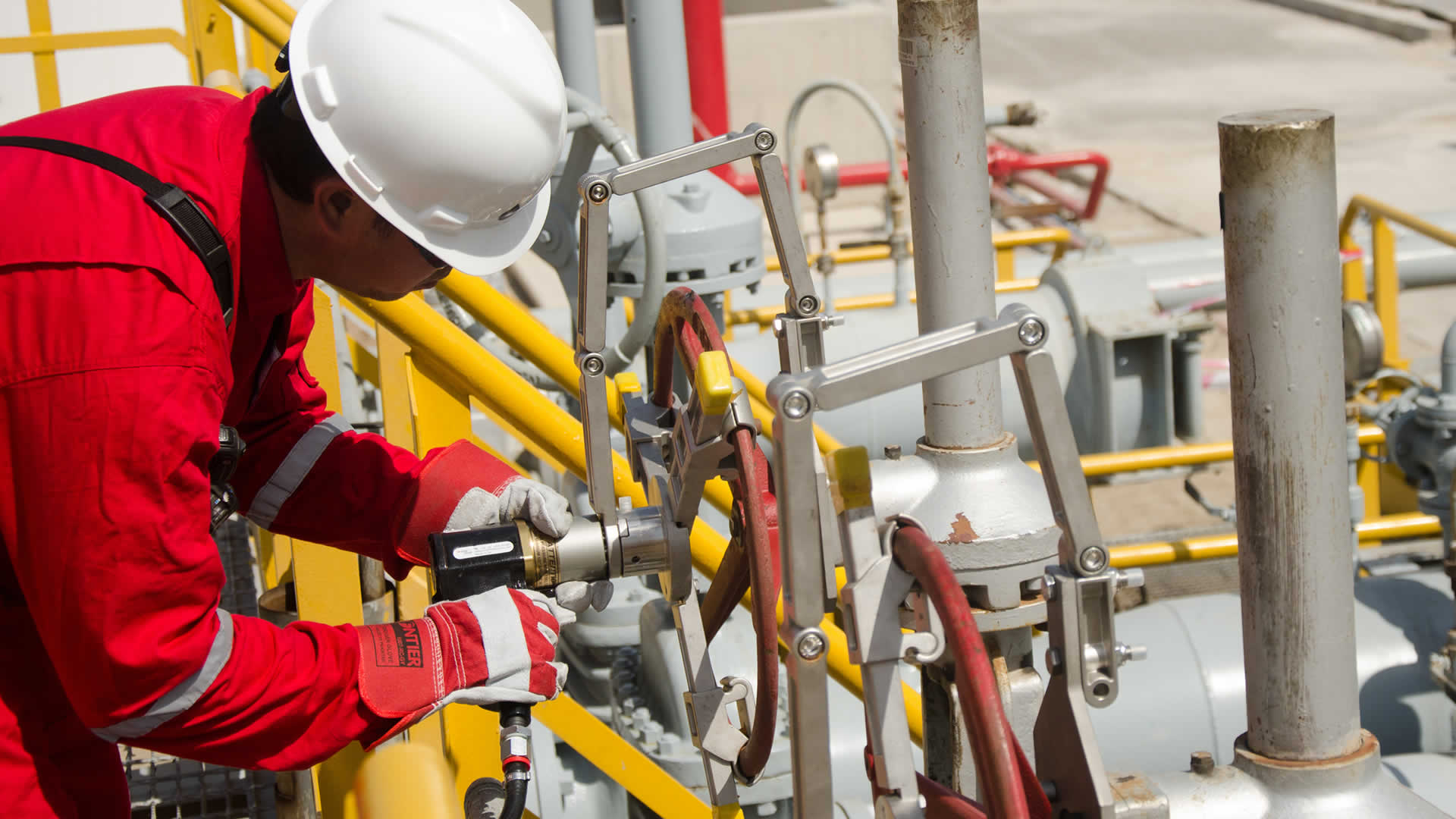

EasiDrive portable actuator gun
EasiDrive portable actuator for linear valves

Mounting methods

Direct drive

  • For gear operated valves
  • Original handwheel removed
  • Universal reaction device

Offset gearbox

  • For gate valves with rising spindle
  • Original handwheel removed
  • Universal reaction device.

Hand wheel drive

  • For gear operated valves
  • Original handwheel retained, drive plate bolted onto handwheel
  • Custom made reaction device

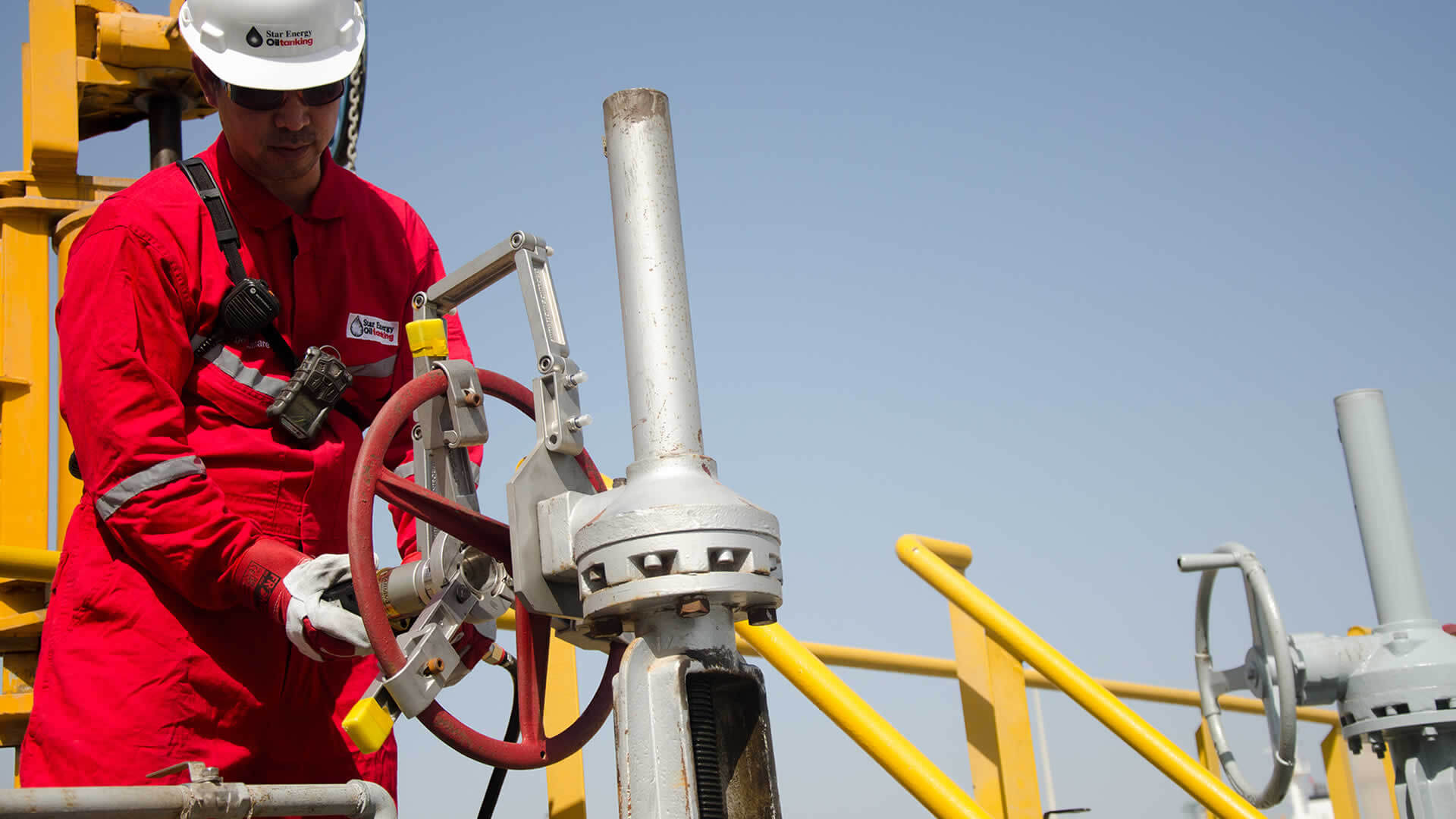

Hand wheel drive, offset

  • For gate valves with rising spindle
  • Original handwheel retained, drive plate bolted onto handwheel
  • Custom made reaction device

Reference companies

The EasiDrive portable valve actuator is used globally by major end-users to avoid injuries and increase operator convenience during valve operations.

BASF logo small
BP logo small
Shell logo small
Total logo small
  • Operating torque up to 950 Nm (700 lbf. ft)
  • Recommended air supply 80 psi / 5.5 bar
  • Standard hose length 3 metres
  • Calibration certificates supplied as standard
  • Output Square Drive (Male) 3/4″ (19.05mm)
  • Forward & Reverse direction
  • Torque Accuracy +/- 5%
  • Air Consumption 19 litres/second (40 cfm)
  • Maximum Air Pressure 7.2 bar (105 psi)
  • Noise less than 85 dB(A)
  • Vibration: Vibration level at handle does not exceed 2.5m/sec (Low)
  • Tool Weight 3.5 Kg (7.72 lbs)
  • Operating torque up to 550 Nm (405 lbf. ft)
  • Operating voltage 110/240
  • Torque adjusted via output feature buttons
  • CE and EMC certified
  • Output Square Drive (Male): 3/4″ (19.05mm)
  • Forward & Reverse Torque direction
  • Accuracy +/- 10%
  • Minimum Output Torque 150 Nm (110.6 lbf.ft)
  • Maximum Output Torque 550 Nm
  • Speed 21 rpm (Single)
  • Electric Motor Input Power 850 Watts
  • Electric Motor Output Power 480 Watts
  • Noise less than 85 dB(A)
  • Vibration level at handle does not exceed 2.5m/sec (Low)
  • Tool Weight 4.5 Kg (9.93 lbs)

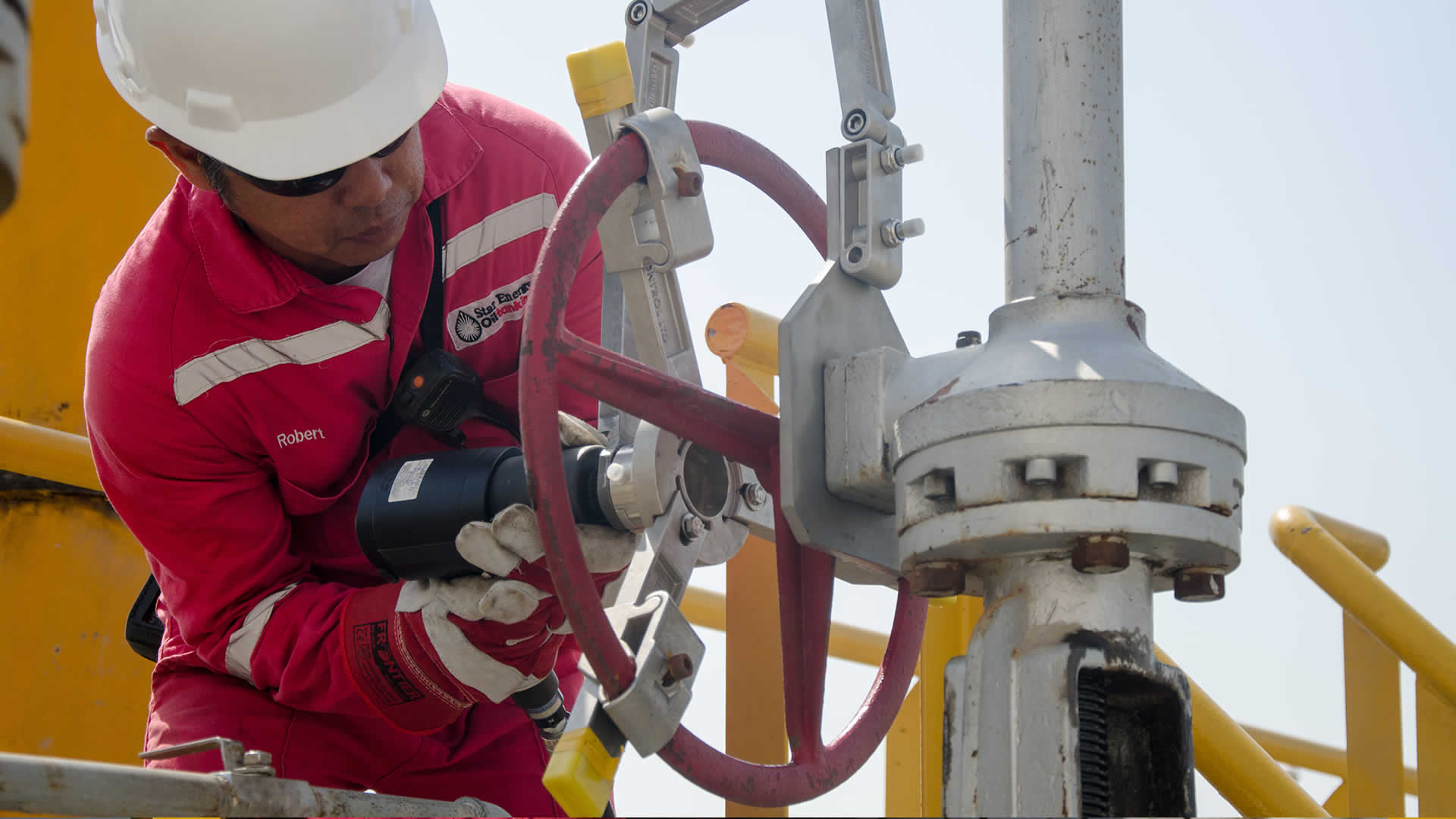

Portable valve actuator for multi rotation valves
